Wolong Nanyang YFB3 series low voltage high efficiency dust explosion-proof asynchronous three-phase AC motor

YFB3 series dust explosion-proof three-phase asynchronous motors are fully enclosed self-fan-cooled squirrel-cage three-phase asynchronous motors. It has the characteristics of small size, light weight, reliable operation, beautiful appearance, etc., and has the advantages of high efficiency, low noise, small vibration, large temperature rise margin, excellent performance, advanced and reasonable explosion-proof structure, safe and reliable use, etc.

Application

Wolong Nanyang YFB3 series dust explosion-proof three-phase asynchronous motors comply with IEC standards, and the motor efficiency reaches IE3 level. It has the advantages of large terminal box volume, improved safety and reliability, increased capacity, frequency conversion capability, and professional appearance design, which greatly improves the market competitiveness of explosion-proof products. The motor explosion-proof level is Ex tD A21 IP65 T130℃; Ex tD A22 IP65 T130℃. It is widely used in food processing, chemical industry, coal mines and other places with explosion-proof dangerous mixtures.

Basic Features

 Frame size: 80~355mm.

Rated power range: 0.55～315kW

Number of poles: 2～16 poles
Rated voltage: 380, 660, 380/660V. (Note: Basic series 3kW and below voltage 380V is Y connection, 3kW and above voltage 380V is △ connection; special voltage can also be manufactured)
Rated frequency: 50Hz
Insulation: 155 (F) class
Efficiency: Energy efficiency class 2/energy efficiency class 3
Cooling method: IC411
Installation method: IMB3 (other installation methods can also be manufactured).
Protection level: IP65, IP55
Operating mode: S1
Explosion-proof marks: Ex tD A21 IP65 T 130°C, Ex tD A22 IP65 T 130°C, Ex tD A22 IP55 T 130°C
Ambient air temperature: -15～+40℃.
Altitude: no more than 1000m.
(The special ambient air temperature and altitude need to be agreed by both parties, please mention it when ordering.)

Introduction

Y FB 3-355 M 1-4 W

Y---asynchronous motor

F B--Dust explosion-proof type

3--Pole number

355--Frame Size

M--Seat length

1-- No.1 core hub length

4--Poles

W--special environment code (outdoor type)

Mounting

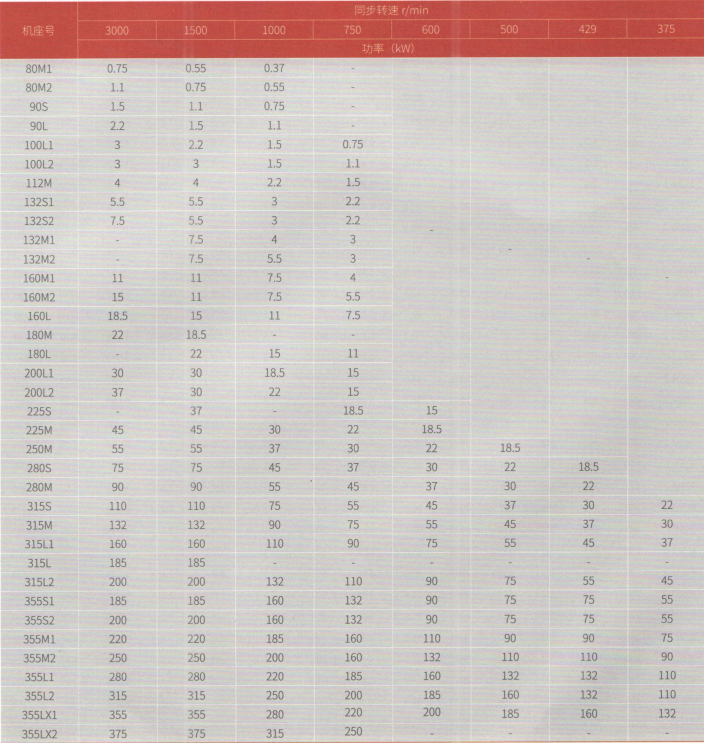

Parameter
