WOLONG Nanyang ATB brand YWKK、YWKS High-voltage Non-sparking Three-phase Induction Motor(frame size 315～630)

This series of high voltage electric motors adopts a box-type structure, a steel plate bending machine base, and a cast iron end cover, which has the advantages of strong load capacity, easy maintenance and assembly. The motor is light and has good rigidity. After removing the cooler, you can observe or touch the inside of the AC motors, which is convenient for installation and maintenance.

The stator adopts a pressed-in external pressure structure, the stator winding adopts 155 (F) grade insulation, and the stator coil is wound with double glass fiber film tape wrapped copper flat wire. After wrapping the main insulation and VPI overall varnishing, it has high electrical strength, mechanical strength, insulation performance, moisture resistance and thermal stability.

Application

This series of WOLONG motor has lower center height, higher power, lower noise, safe and reliable operation, use dimension convenient and other features. Suitable for Zone 2 hazardous areas with explosive environments. Drive various fans, compressors, pumps, crushers, cutting machinery, transportation machinery, general machinery and other mechanical equipment, in mining, steel,machinery, petroleum, chemical, power station and other working conditions in the enterprise as the prime power.

Model Description

Y W KK(KS)-630-4W

Y-Three Phase Asynchronous Motor

W-No spark

K K- Air to air cooling

K S-Air to water cooling

630-Specification code, indicating that the shaft center height is 630mm

4-Poles

W-Environmental code, meaning outdoor (indoor omitted)

Implementation Standards

GB 755 rotary motor rating and performance

Classification of structure type, installation type and junction box position of GB/T 997 rotary motor (IM code)

GB/T 1032 three-phase asynchronous motor test method

GB/T 1993 Rotating motor cooling method

GB/T 4942.1 Protection class (IP code) classification of the overall structure of the rotating motor

GB 1971 Rotary motor line end mark and direction of rotation

GB/T 4772.2 Dimensions and output power levels of rotating motors - Part 2: Stand sizes 355 to 1000 and convex

Border numbers 1180 ~ 2360

GB 10068 - Measurement, assessment and limits of mechanical vibration for motors with a shaft center height of 56mm and above

GB/T 10069.1 Rotating motor noise determination methods and limits - Part 1: Rotating motor noise determination methods

GB 10069.3 Rotating motor noise determination methods and limits - Part 3: Noise limits

GB 14711 General safety requirements for small and medium-sized rotating motors

GB 30254 high voltage three-phase cage asynchronous motor energy efficiency limit value and energy efficiency class

Basic Features

Frame number: 315 ~ 630

Electric voltage: 6000 ~ 10000V

Frequency: 50Hz, 60Hz

Power range: 160 ~ 5600kW

Pole number: 2 ~ 20P

Heat classification: 155(F)

Temperature rise limit: 80K(Class B), 105K(Class F)

Efficiency: Level 3 energy efficiency. Conforms to GB30254-2013 "high voltage three-phase cage asynchronous motor energy efficiency limit.

Set value and Energy Efficiency Level "Energy efficiency level 3.

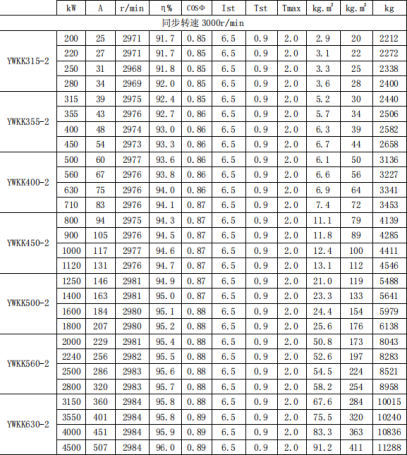

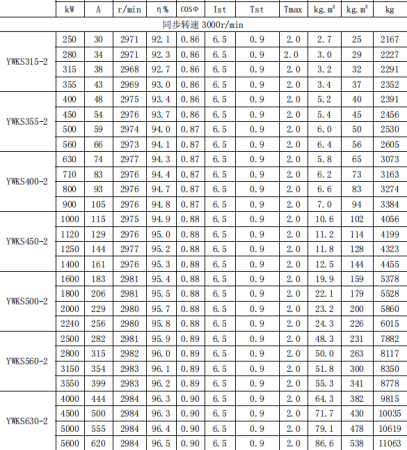

Cooling method: See Table 2

Installation Mode: IMB3

Protection level: See Table 2

Operation mode: S1

ambient air temperature: -15℃ ~ +40℃

altitude: ≤1000mm

indoor (standard configuration).

Optional: outdoor (W), outdoor anti-medium corrosion (WF1), outdoor anti-strong corrosion (WF2), indoor anti-middle

Equal corrosion (F1), indoor corrosion protection (F2), hot and humid zone (TH), dry tropical zone (TA), outdoor hot and humid zone (THW),

Outdoor Dry Tropics (TAW).
