WOLONG Nanyang ATB brand YBSS series flameproof three-phase asynchronous motor for conveyor

Application

The explosion-proof performance of the WOLONG Ac motor is in accordance with GB3836.1-2010 “Explosive Atmosphere Part 1: General Requirements for Equipment” and GB3836.2-2010 Explosive Atmosphere Part 2: Equipment Protected by Flameproof Enclosure “d”. Its explosion-proof mark is “Ex d I Mb” (“Exd I”-before 2010). It is suitable for the place where the explosive gas mixture of methane or coal dust exists.

Description

Y B S S - 250 - 4G

Y B - Asynchronous motor, flameproof type

S- Conveyor

S- Water cooling

250 - Power(kW)

4- Poles

G- Plateau

 Ex dⅠMb

Ex--Explosion Protection Mark

d--Type of Explosion Protection(Explosion-proof Type)

Ⅰ -- Electrical Apparatus Class(ClassⅠ)

Mb -- Equipment Protection Degree

Basic parameters:

Rated voltage: 660/1140V, 1140V, 3300V

Rated frequency: 50Hz

Rated power: 160~1600kW, 110/55~1000/500kW

Number of poles: 4, 4/8

Thermal classification: 180(H)

Temperature rise limit: 135K

Installation method: IMB10, IMB5, IMB3, IMB35

Protection level: IP55

Cooling method: IC3W7

Ambient air temperature: 0~+40℃

Operation mode: S1

Altitude: ≤1000mm

Indoor (standard configuration)

Explosion-proof mark (standard configuration): Exd I Mb

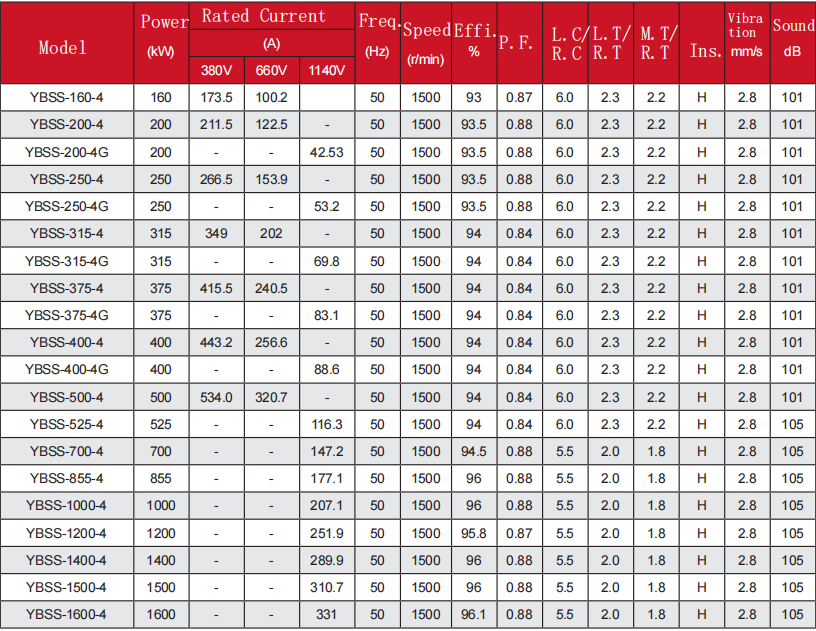

Parameter
