WOLONG Nanyang ATB brand TZYW series positive pressure housing type brushless excitation synchronous motor

Short Description:

WOLONG Schorch brand TZYW series positive pressure housing type brushless excitation synchronous motor (core outer diameter 1730～3250) (hereinafter referred to as motor) is a new generation of explosion-proof series products developed by WOLONG motors china company on the basis of introducing and absorbing foreign advanced technology and combining WOLONG Nanyang Explosion Protection company’s long-term stable production of increased safety brushless excitation synchronous motor design and manufacturing experience. Its positive pressure explosion-proof technology is the first in Asynchronous Motor Suppliers China.

Send email to us Download

Product Detail

Product Tags

Application

This series of synchronisation motors is made of exquisite materials and is well made. It has the characteristics of small size, light weight, high power, high efficiency, low noise, low vibration, low leakage, safe and reliable operation, easy use and maintenance, energy saving and environmental protection, etc.

The WOLONG schorch brand TZYW series motor can be manufactured into positive pressure type Expx and Expz explosion-proof types. Expx explosion-proof type can be used in Zone 1 and Zone 2, and Expz explosion-proof type can be used in Zone 2. The two explosion-proof types are used in the explosive gas environment formed by the gas, steam or mist-like explosive gas and air with ignition temperature of T1, T2, T3, T4 in the factory. This series of WOLONG motors is a high-tech product integrating explosion-proof technology, power electronics technology, automatic control technology, and motor technology.

Description

TZYW（KK）2500 － 20 / 2600

TZYW- Positive pressure housing type brushless excitation synchronous motor (the default is upper water cooling structure, KK stands for air-to-air cooling)

2500- Rated Power

20- Number of pole(20p)

2600- Stator punching outer diameter (Φ2600mm)

Ex e pz II T3 Gc

Ex- Explosion Protection Mark

epz Type of Explosion Protection((Main body positive pressure type “pz”, junction box is increased safety type “e”)

Ⅱ- Electrical Apparatus Class(ClassⅡ)

T3- Temperature Group(T3)

Gc- Equipment Protection Degree

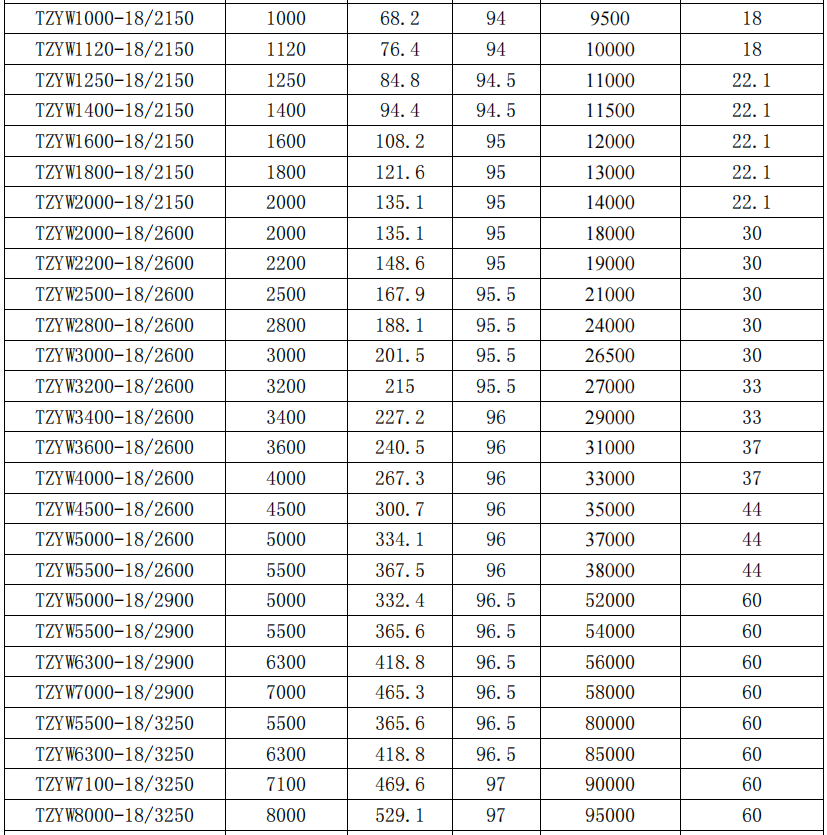

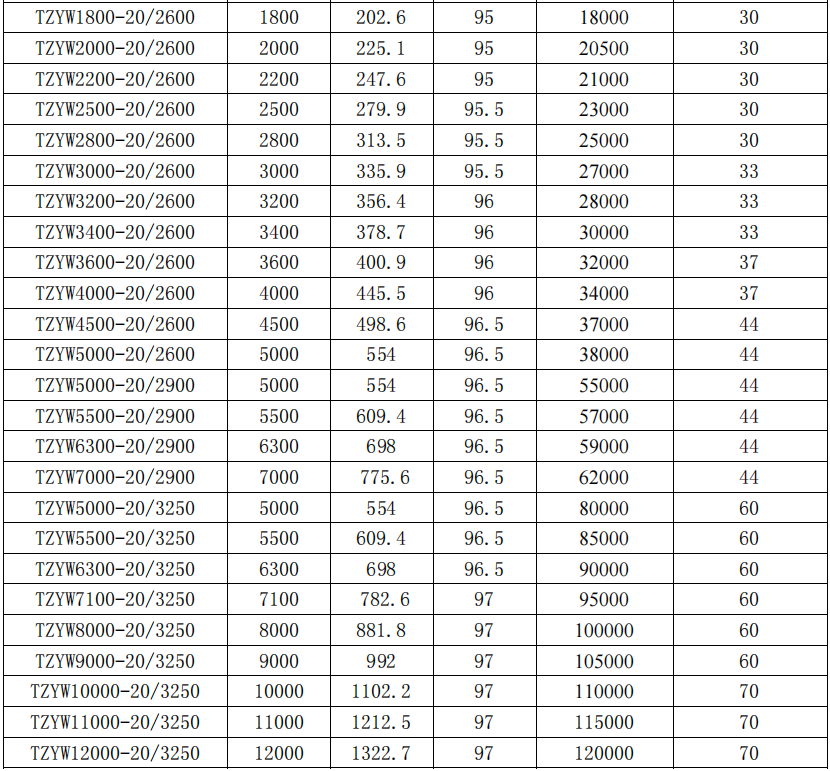

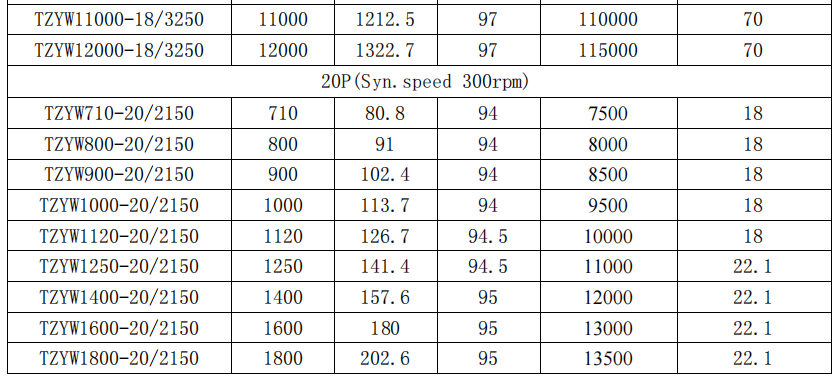

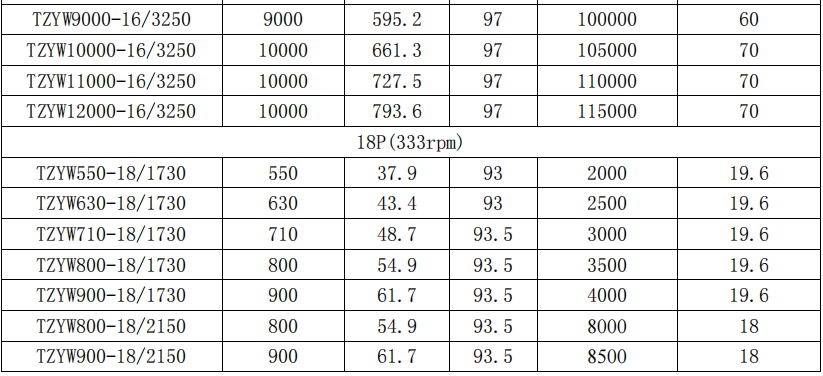

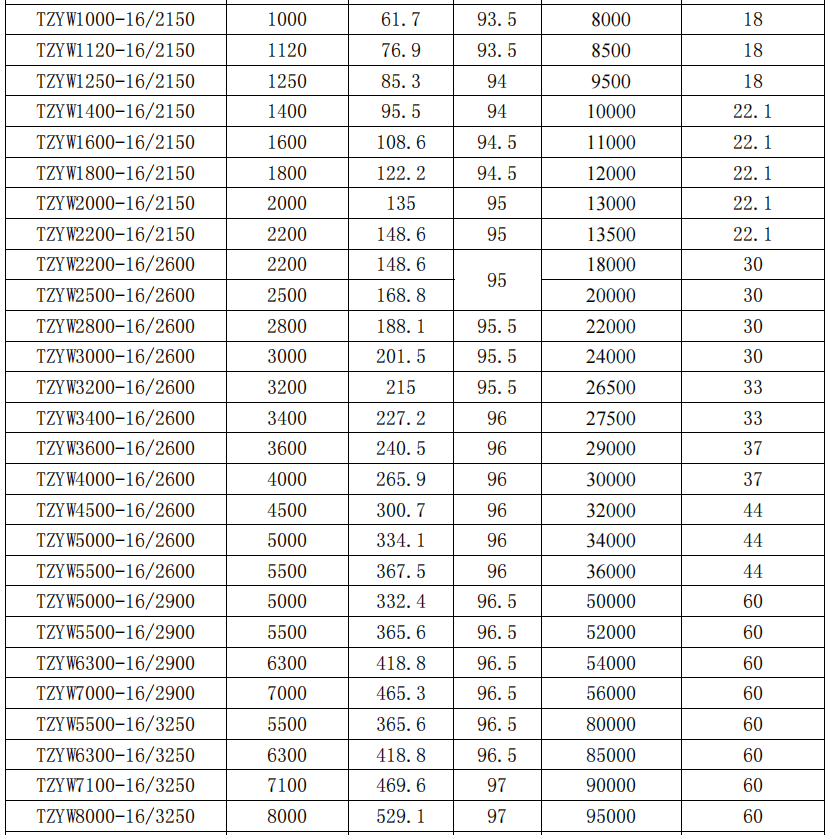

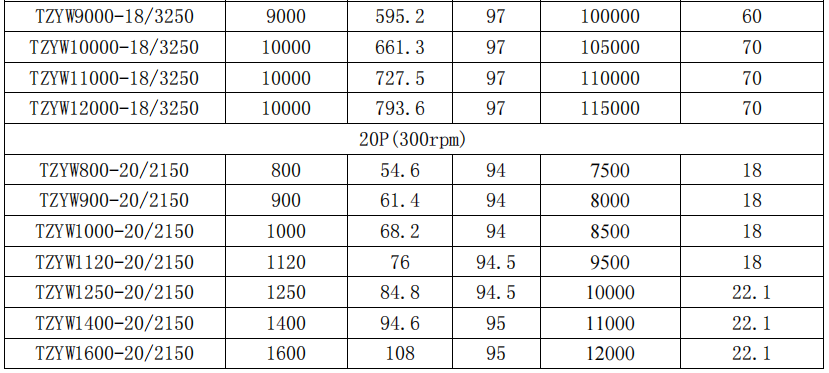

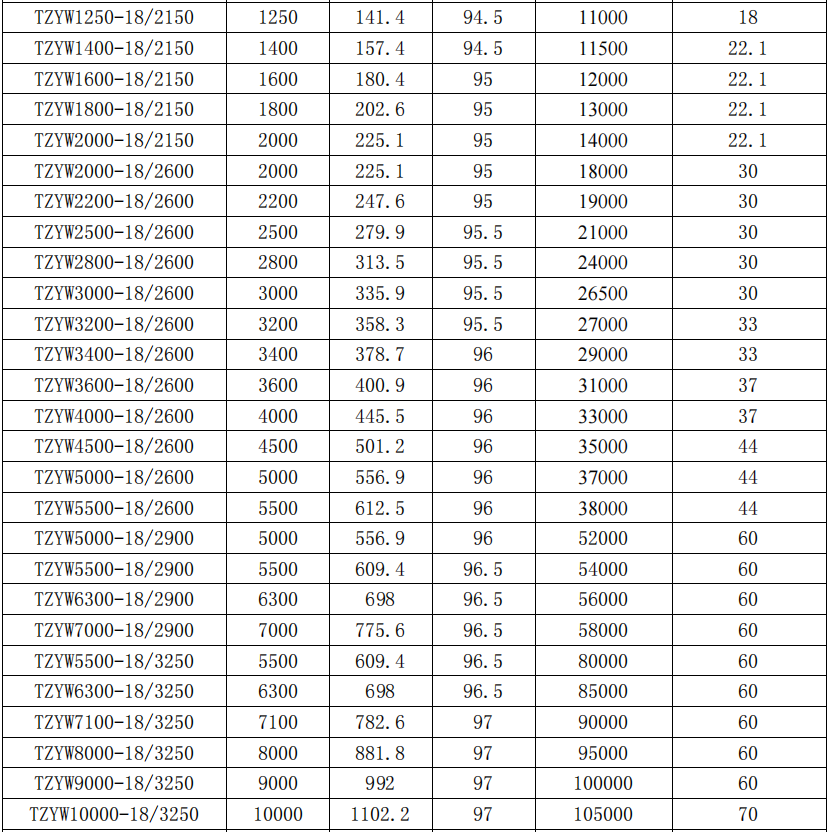

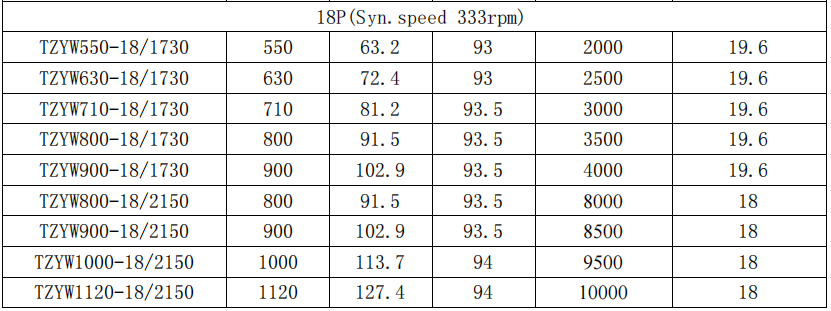

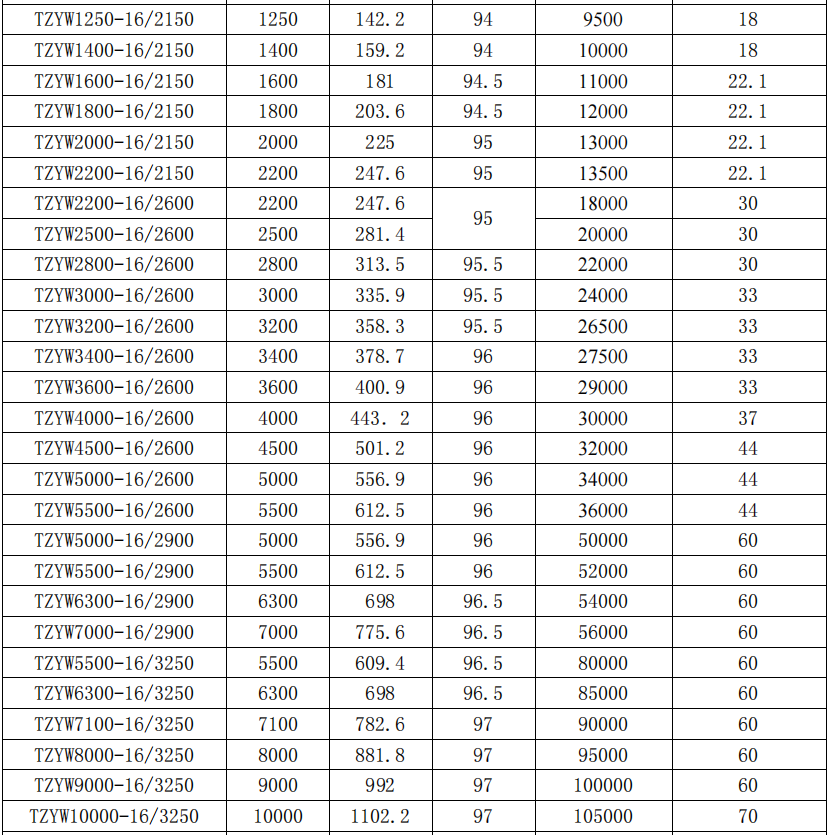

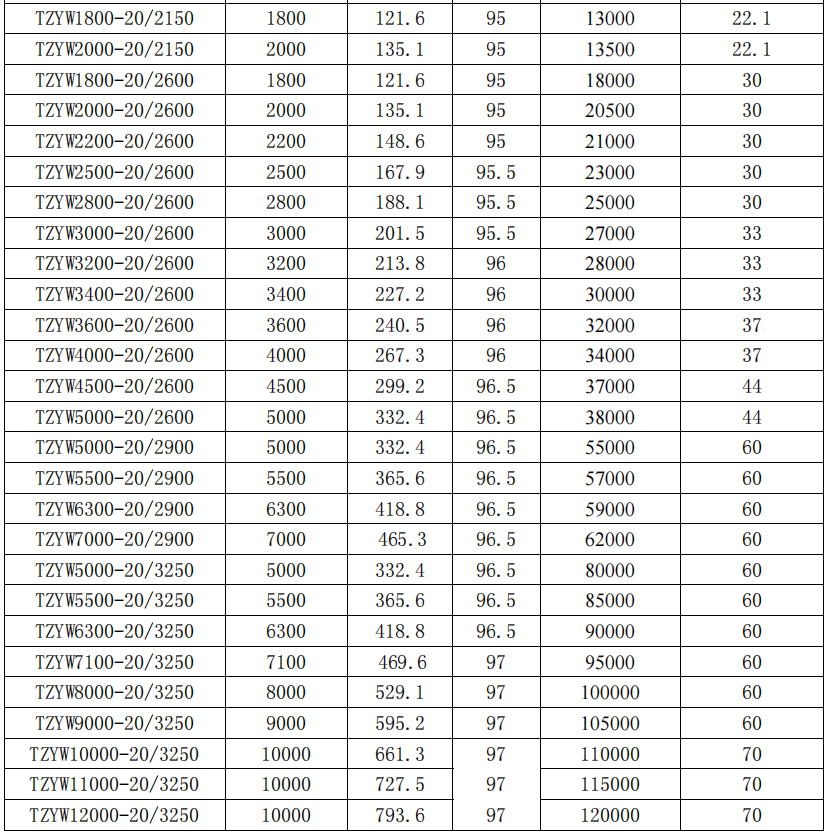

Basic parameters:

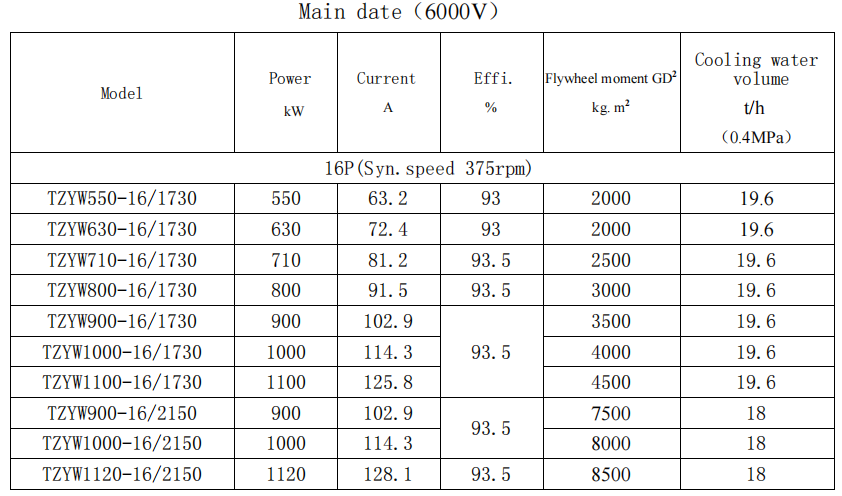

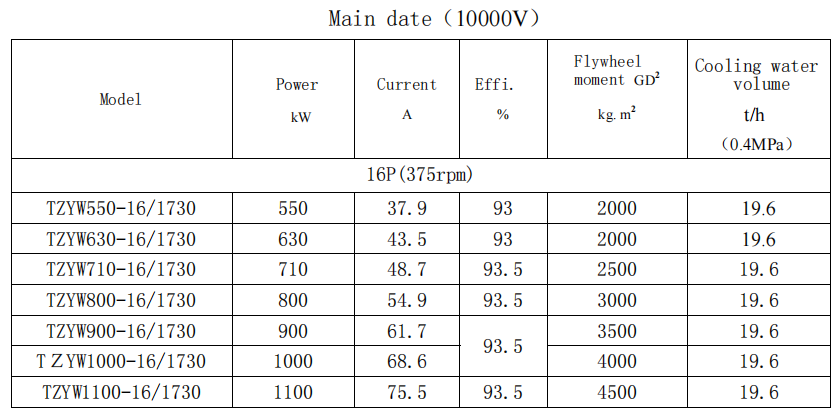

Rated voltage: 6000V、10000V

Rated frequency: 50Hz
