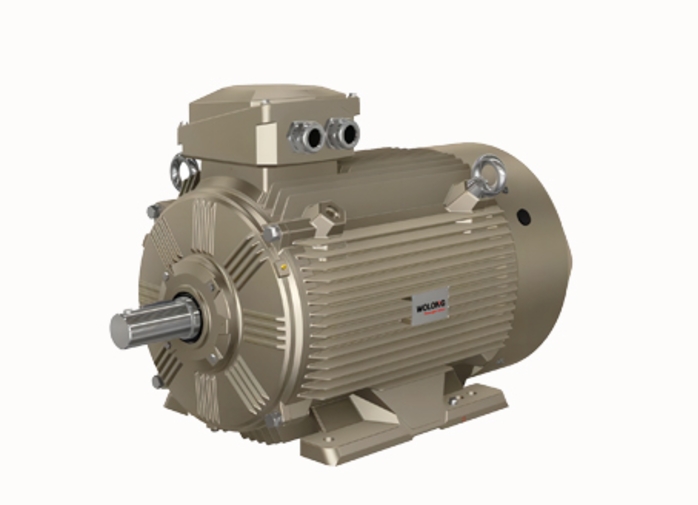

Permanent magnet synchronous motors (PMMs) have gained widespread attention in various applications due to their superior efficiency compared to conventional three phase asynchronous induction motors. One of the key factors for the improved efficiency lies in the unique operating characteristics of PMMs, especially under normal operating conditions.
The permanent magnet synchronous motor is comprised of three main components: a stator, a rotor, and a housing. Similar to standard three phase AC induction motors, the stator core is constructed as a laminated structure to minimize iron loss caused by eddy current and hysteresis effects during motor operation. The winding is typically a three-phase symmetrical structure, although the parameter selection differs significantly. The rotor part is available in a variety of forms, including permanent magnet rotors with starting squirrel cages and embedded or surface-mounted pure permanent magnet rotors. The rotor core can be manufactured as a solid structure or laminated. The rotor is equipped with permanent magnet material, which is typically referred to as magnetic steel.
For permanent magnet motor, the rotor and stator fields are in sync. This synchronous operation means that the rotor rotates at the same speed as the rotating magnetic field produced by the stator. As a result, there is no induced current in the rotor section. This absence of induced current is critical because it eliminates several forms of energy loss that are typically present in other motor types.
Furthermore, the rotor material is subject to hysteresis and eddy current losses as it responds to a changing magnetic field. In contrast, permanent magnet motors (PMMs) exhibit minimal loss due to the absence of hysteresis and eddy current effects. The rotor is composed of permanent magnets, which generate a magnetic field without the need for external current, thereby circumventing the associated losses and heating. Furthermore, the reduction in rotor losses enables PMMs to operate at high efficiencies, typically exceeding 90%. This enhanced efficiency translates to reduced energy consumption, lower operating costs, and diminished heat generation, which can prolong the lifespan of the motor and its components.In summary, the synchronous operation of the rotor and stator fields in a permanent magnet motor eliminates induced currents and associated losses, making it significantly more efficient than an induction motor. This efficiency not only improves performance, but also contributes to energy conservation and sustainability in a variety of industrial applications.
