Thermistors are widely used in temperature sensing and control applications across various industries. Among the different types of thermistors, PTC (Positive Temperature Coefficient) and PT100 are the two commonly used variants. Both types of thermistors are used for temperature measurement, but they have different characteristics and applications. Understanding the differences between PTC and PT100 thermistors is critical to selecting the right sensor for your specific temperature sensing requirements.
PTC thermistor:
PTC thermistors are temperature-sensitive resistors with a positive temperature coefficient, which means that their resistance increases as temperature increases. These thermistors are made of ceramic materials such as barium titanate, and their resistance changes significantly with changes in temperature. PTC thermistors are commonly used in applications requiring over-temperature protection, self-regulation, and current limiting.
One of the main features of PTC thermistors is their self-regulating properties. As the temperature increases, the resistance of the PTC thermistor increases, causing the current to decrease. This self-regulating behavior makes PTC thermistors suitable for applications such as motor protection, heating elements, and overcurrent protection in electronic circuits.
Winding thermal sensor:

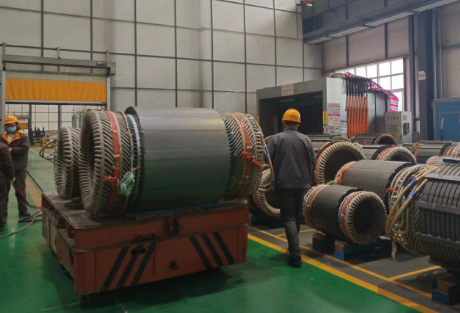

Winding thermal sensors are used in electrical equipment to monitor the temperature of windings in motors, transformers and other electrical equipment. These sensors are critical to preventing overheating and ensuring safe equipment operation. Winding thermal sensors usually use PTC thermistors as temperature sensing elements because they have self-adjusting characteristics and are highly sensitive to temperature changes.
PT100 thermistor:
The PT100 is a resistance temperature detector (RTD) using platinum as the sensing element. Unlike PTC thermistors, the resistance of PT100 thermistors increases linearly with temperature, following the standardized resistance-temperature relationship defined by the International Electrotechnical Commission (IEC). PT100 thermistors are known for their high accuracy, stability and wide temperature measurement range, making them ideal for precision temperature measurement applications.
A PT100 thermistor has a resistance of 100 ohms at 0°C and increases by approximately 0.385 ohms for each degree of temperature increase. This linear relationship between resistance and temperature allows accurate and reliable temperature measurements over a wide temperature range.
The difference between PTC and PT100:
The main difference between PTC and PT100 thermistors is their resistance-temperature characteristics. PTC thermistors exhibit a nonlinear resistance-temperature relationship with a positive temperature coefficient, while PT100 thermistors have a linear resistance-temperature relationship with a near-zero temperature coefficient.
Another notable difference is the materials used in its construction. PTC thermistors are usually made of ceramic materials, while PT100 thermistors use platinum as the sensing element. The use of platinum in PT100 thermistors contributes to their high accuracy and stability, especially in demanding industrial and laboratory environments.
application:
PTC thermistors can be used for overheating protection, self-regulating heating elements, current limiting circuits and motor protection. Their self-regulating behavior makes them suitable for applications where temperature control and protection are critical.
PT100 thermistors, on the other hand, are widely used in industrial and laboratory environments for accurate temperature measurement. They are commonly used in temperature monitoring systems, environmental chambers, HVAC systems, and scientific research applications where accurate and stable temperature sensing is critical.
To summarize, although both PTC and PT100 thermistors are used for temperature sensing, they have different characteristics and applications. PTC thermistors are known for their self-regulating behavior and are commonly used in applications requiring over-temperature protection and current limiting. PT100 thermistors, on the other hand, offer high accuracy and stability, making them suitable for precise temperature measurements in industrial and laboratory environments. Understanding the differences between these thermistors is critical to selecting the appropriate sensor for your specific temperature sensing requirements.
