Features of non-sparking air-cooled motor:
535kW-2270kW，6.6kV/3Ph/50Hz，2P，Ex ec IIC T3
Complies with the latest standard of IEC60079-7: 2015 version of Ex ec
The whole series has obtained IEC Ex and ATEX international explosion-proof certificates
Meet API541 and Exxon Mobil technical specifications
Starting current Ist ＜ 550% FLC
No-load noise 82dB (A)
Bearing housing RMS Velocity 1.8mm/s
Shaft peak-to-peak 25μm
Lubricating oil inlet temperature 50 ° C

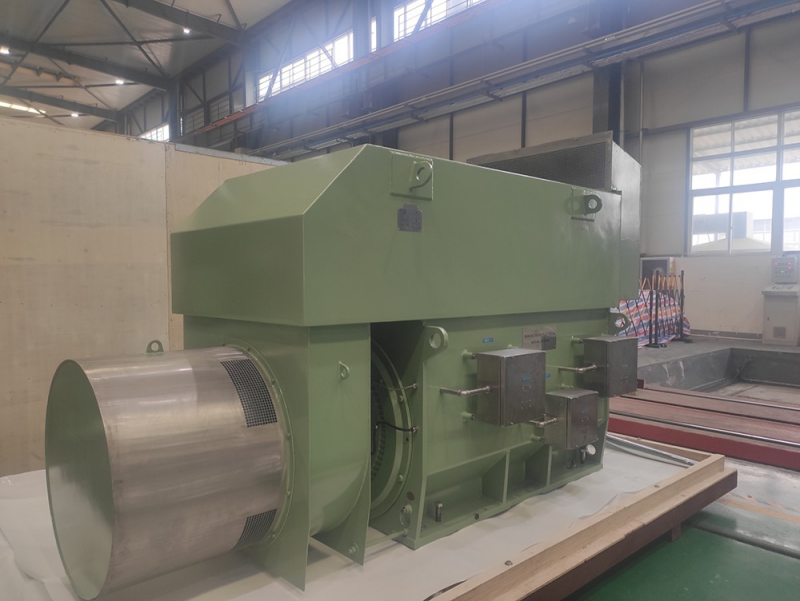

Non-sparking Air-cooled Motor
The project was designed by Tecnicas Reunidas, an internationally renowned engineering and design institute. The products will be used to support the centrifugal pump products of Baker Hughes’ Nuovo Pignone Factory in Italy.
Post time: Dec-29-2023
